      Optimizing Designs with the Grid Array Tool in LightBurn

      A Comprehensive Guide to Creating Rows and Columns of Objects

      What Is the Grid Array Tool?

      The Grid Array tool in LightBurn duplicates objects into rows and columns, allowing for precise control over spacing, orientation, and layout. It's perfect for batch production, maximizing material utilization, and creating intricate patterns.

      Location

      Menu Path: Arrange → Grid / Array
      Modifiers Toolbar: Grid Array Button

      QuickRef-GridArray

      How to Use the Grid Array Tool

      Ref-GridArray-InModifiersToolbar

      1. Select Objects:
        Highlight the object(s) you want to duplicate.

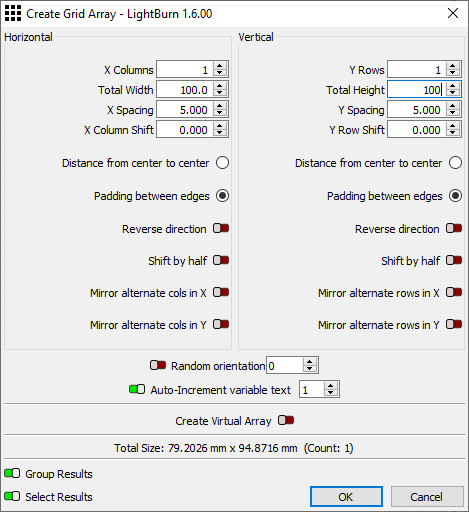

      2. Open the Grid Array Window:
        Go to Arrange → Grid / Array or click the Grid Array button in the Modifiers Toolbar.

        download-Jan-21-2025-03-46-51-7495-PM

      3. Adjust Settings:

        • X Columns and Y Rows: Define the number of copies in each dimension.
        • X/Y Spacing: Set the spacing between objects, either by center-to-center distance or edge padding.
        • X Column Shift / Y Row Shift: Offset alternate columns or rows.
        • Mirror and Reverse: Flip or reverse alternate rows or columns for unique layouts.

      4. Additional Options:

        • Random Orientation: Randomly rotate duplicates for varied designs.
        • Auto-Increment Variable Text: Automatically advance text values in duplicates.

      5. Virtual Arrays:
        Create synced clones with dashed outlines and muted fills. Edits to the original object automatically apply to all clones.

      Key Features and Options

      X Columns and Y Rows

      Specify how many copies to create horizontally and vertically.

      Total Width and Height

      Define the grid's overall size; the tool adjusts the number of rows and columns to fit.

      Spacing

      Control the distance between objects using:

      • Distance from Center to Center: Spacing measured from object centers.
      • Padding Between Edges: Spacing measured from object edges.

      Mirroring and Reversing

      • Mirror Alternate Rows/Columns: Flip objects in alternate rows or columns.
      • Reverse Direction: Change the order in which objects are created.

      Ref-GridArray-MaterialUtilization

      Random Orientation

      Randomly rotates duplicates. Use the seed field to ensure consistent randomness across projects.

      Virtual Arrays

      Virtual Arrays are synced clones of original objects. Changes to the original object affect all clones. Use them for designs requiring consistency and scalability.

      Ref-GridArray-VirtualArrayDemo

      Editing Virtual Arrays:

      • Edit Array: Modify parameters or convert to a standard array.
      • Flatten Array: Convert clones into independent objects.
      • Add/Remove from Array: Include or exclude objects from the array.

      Ref-GridArray-VirtualArrayOptions

      Tips for Efficient Use

      • Batch Production: Duplicate designs for multiple production runs with precise spacing.
      • Material Utilization: Combine mirroring, spacing, and shifting to optimize material use.
      • Patterns: Create interesting layouts by combining mirroring, random orientation, and shifting.

      Troubleshooting

      Issue: Grid Array isn’t creating as expected.
      Solutions:

      • Ensure objects are selected before opening the Grid Array tool.
      • Double-check settings for rows, columns, and spacing.
      • For Virtual Arrays, confirm that objects are synced to the original.

      By mastering the Grid Array tool, you can streamline your design process, optimize material use, and unlock creative possibilities for patterns and layouts.
